CUT WHEELS AND PINIONS FOR

Wheels to be crossed out / Pinions supplied on stubs to be cut off and fitted to arbor 1/2/3 or 4 pinions on one stub PHOTO

Some years ago Mr John Tyler of California published a book entitled " How to Make An English Style Bracket Clock ". This book described in great detail and with many photographs, the manufacture of a break-arch style bracket clock. In 1991 the book was republished , later a list of modifications were listed by a Dutch clock club.

A study of the book showed that Mr Tyler has a very well equipped workshop, My own equipment consists of a Myford Series Seven lathe equipped with a vertical slide and machining vice, a small drilling machine, a home made wheel cutting spindle and pinion milling fixture plus a range of hand tools possessed by the model engineer. It was clear that to produce this clock on my equipment and to include the modifications described by the Dutch clock club some modifications and simplification of Mr Tyler's design would be required.

Two versions of this clock will be described i.e. a simple timepiece and a striking clock, due to my modifications these clocks use two less cutters than Mr Tyler's

Cutters Module 0.6mod wheel , 0.55 x 8 leaf, 0.55 x 6 pinion

ALL PRICES PLUS POSTAGE & PACKING

		*Back To Home Page*
ITEM	£ p
BOOK available soon	27. 50
GOING TRAIN		*Back To Clock Construction* *Books*
GREAT WHEEL	19. 50	*Back To Clock Construction* *Books*
CENTRE WHEEL	13. 50	ORDER FORM
THIRD WHEEL	13. 50
ESCAPE WHEEL	13. 50
HOUR WHEEL	13. 50
MINUTE & REVERSE MINUTE WHEELS / 2	14. 00
MAINTAINING RATCHET	17. 00
FUSEE RATCHET	12. 50
BARREL RATCHET	13. 00
STRIKE TRAIN
GREAT WHEEL	19. 50
PIN WHEEL	13. 50
PALLET WHEEL	13. 50
WARNING WHEEL	13. 50
FUSEE RATCHET	12. 50
BARREL RATCHET	13. 00

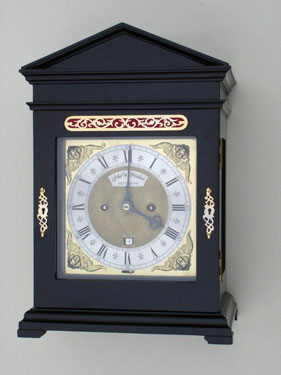

CENTRE, PIN & PALLET PINIONS / 3	20. 00	Photo by kind permission of Mr J Parslow

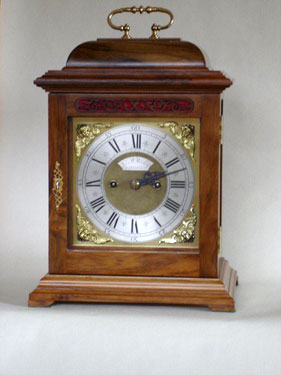

THIRD, ESCAPE, WARNING & FLY PINIONS / 4, 7 LEAF ON ONE ARBOR CENTRED	26. 00	Photo by kind permission of Mr J Parslow
SAME ON INDIVIDUAL ARBORS FOR TURNING	18.00 EACH
MOTION PINION	11. 50
MAINSPRINGS X 2	P. O A.
3" CAST BRASS BELL Photo	15. 00
